Avro Lancaster B.VII NX611, known the world over as "Just Jane" seen here a few years ago during an engine run, has been undergoing a long restoration back to airworthy condition at the Lincolnshire Aviation Heritage Center at the former RAF East Kirkby in England. Here is the latest update on restoration progress. (image via wikipedia)
AirCorps Aircraft Depot

As most of our readers will know, Avro Lancaster B.VII NX611 Just Jane is under restoration to airworthy condition with the Lincoln Aviation Heritage Center at former RAF East Kirkby in Lincolnshire, England. The group has made magnificent progress, even during the pandemic, and we thought that our readers might like to see a recent (edited) restoration update, reproduced here with permission. As the days grow longer and warmer, the team at the Lincolnshire Aviation Heritage Centre is preparing to roll out Avro Lancaster NX611 Just Jane for her pre-season taxi runs. Time is flying, and so is the progress on this iconic aircraft’s restoration. If you’d like to contribute and be a part of this historic restoration, you can do so via the THIS campaign link .

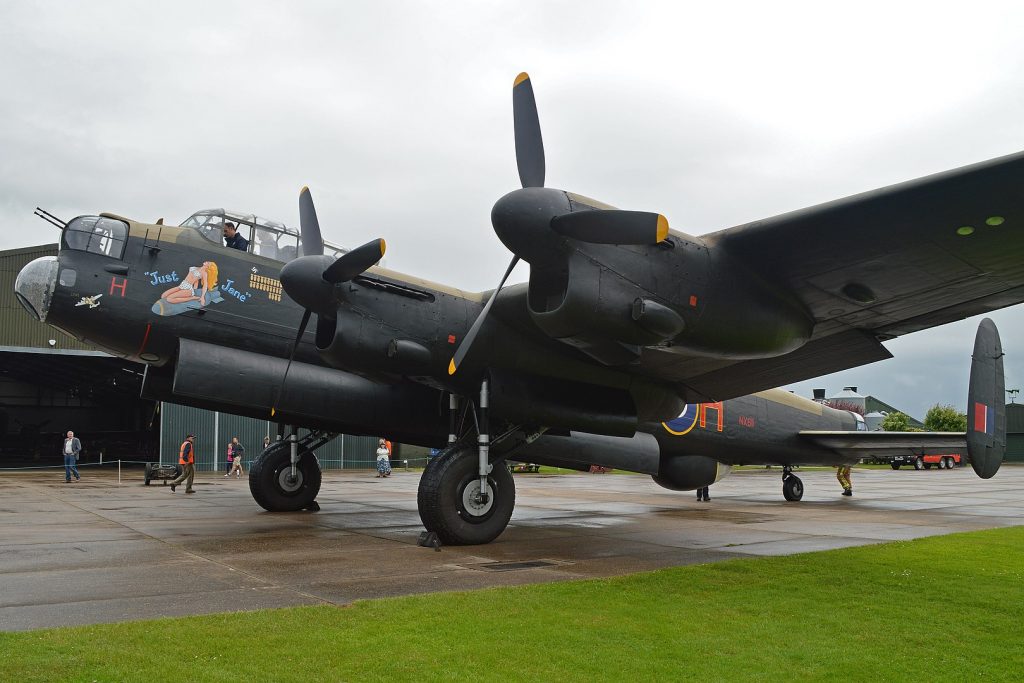

1620px Avro Lancaster B.VII NX611 G ASXX 18808138284
Lancaster ‘Just Jane’ seen outside just after one of her regular taxi-runs at the Lincolnshire Aviation Heritage Centre, East Kirkby, UK back in 2014. The aircraft is in the midst of an airworthy restoration, and this article presents a recent update. (photo by Alan Wilson via Wikimedia)

Riveting Progress on the Rear Fuselage

The past few weeks have been dominated by a particularly labor-intensive task: riveting. Dave, Norm, and Terry have been hard at work tackling the skins and structure around the tail oleo box. Dave has been impressive in managing to rivet the skins singlehandedly where access allows, balancing the reaction bar while handling the riveting gun.

Norm and Terry riveting the structure around the tail oleo box aperture of the rear fuselage of NX611
Norm and Terry riveting the structure around the tail oleo box aperture of the rear fuselage of NX611. Photo via Lincolnshire Aviation Heritage Centre

Norm and Terry have focused on the tail oleo box itself, using annealed rivets to assemble both the box and the structural components it connects to. On the starboard side of the rear fuselage, all skins are now pinned in place. However, due to access limitations, Dave will soon need a riveting partner to continue work on that section—potentially Phil, who has been busy with a related task.

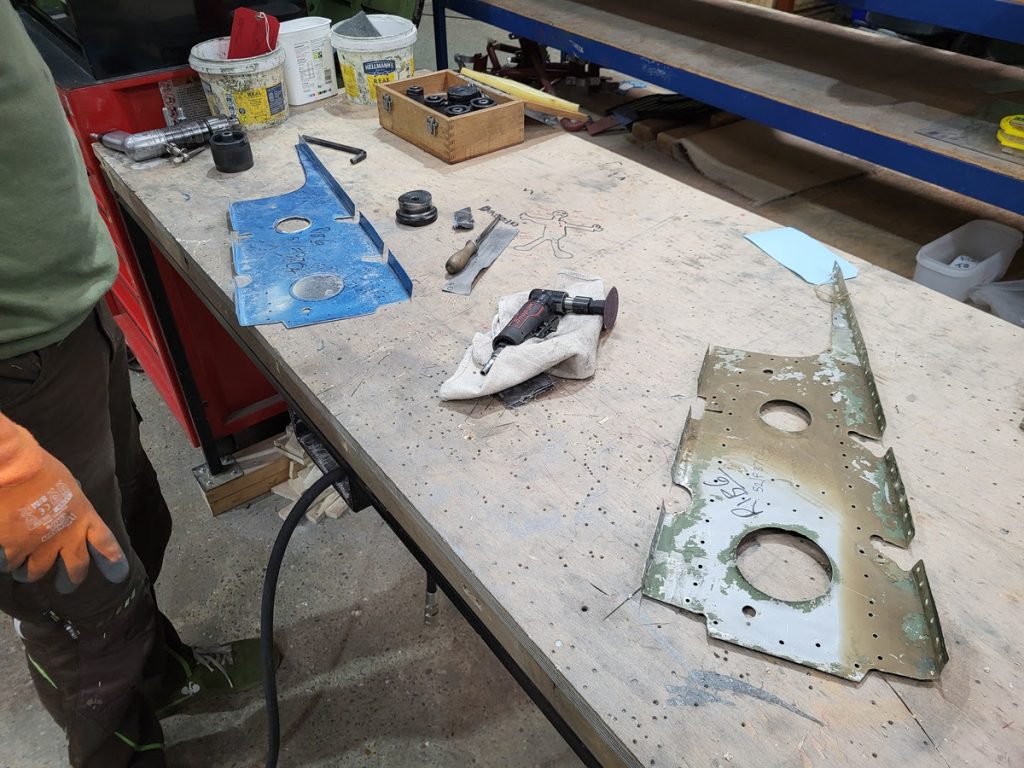

New vs old. Ribs for the port wing trailing edge
New vs old. Ribs for the port wing trailing edge. Photo via Lincolnshire Aviation Heritage Centre

Flying Control Rod Alignment and Work Continues on the Wings

Phil has been cutting and aligning the critical holes for the flying control rods in the fuselage formers. These rods, which link the cockpit to the rudders and elevators, require precise placement to ensure reliable control of the aircraft once operational. Chris has been making strong progress on the port wing’s trailing edge. After inspecting, repairing, and replacing necessary parts, he has moved on to cutting the lightning holes into the ribs. These are made using either a hole cutting kit or the more labor-intensive method of chain drilling and filing, depending on hole size. Once cut, the ribs are trial-fitted and painted.

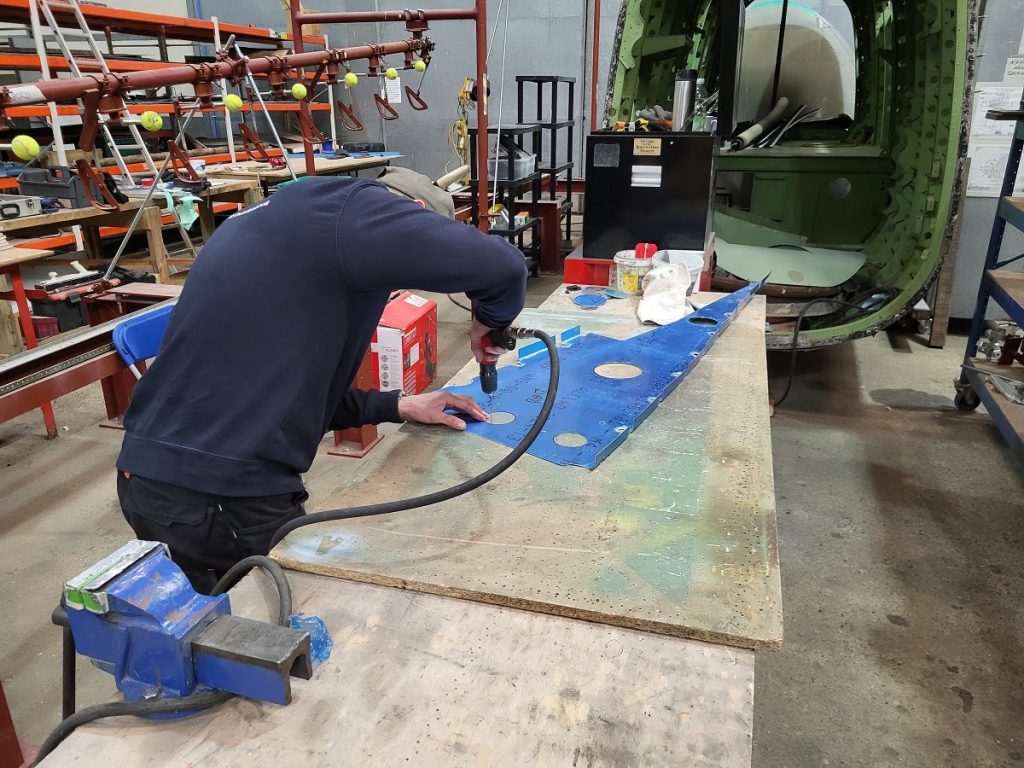

Chris forming the holes in the ribs for the trailing edge
Chris forming the holes in the ribs for the trailing edge. Photo via Lincolnshire Aviation Heritage Centre

Meanwhile, John has been preparing the port wing’s fuel tank bay ribs. After cleaning, blasting, and prepping, most of the components have been saved, though a few require replacement. Rib 5, for example, needed a new web, which John has fabricated. The extrusions—kept in stock from earlier work on the wingtips—will be shaped by Simone at Cunningham Aero.

Rib five from NX611s port wing receiving a new web
Rib five from NX611’s port wing is receiving a new web. Photo via Lincolnshire Aviation Heritage Centre

Rear Turret Work and Structural Checks

The winter months saw several key components temporarily removed from the rear fuselage of KB976 (the section attached to the rest of the Lancaster) and installed into NX611. This allowed the team to verify the alignment of the rear turret ring and associated structure. With this task completed, the parts have now been returned to KB976 and the FN82 rear turret has been successfully refitted. Installing the turret is a careful process—requiring it to be tilted into position to avoid contact with the fuselage. Then, the mounting bolts must be aligned perfectly with the attachment ring. Fortunately, this time the operation went smoothly on the first try.

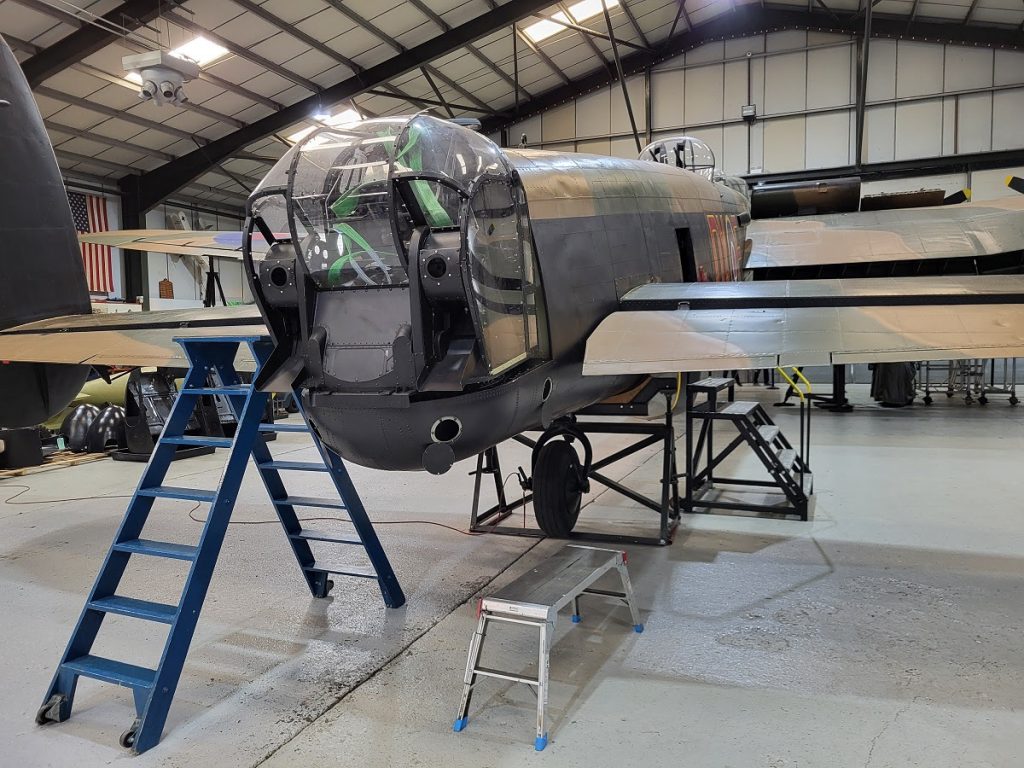

NX611s FN82 rear turret refitted
NX611’s FN82 rear turret refitted. Photo via Lincolnshire Aviation Heritage Centre

Final Fuselage Prep

As riveting continues, Dave is now also preparing another of the lower fuselage skins for drilling and painting. Phil remains focused on finishing the control rod hole alignment before the final skins are installed in that area.

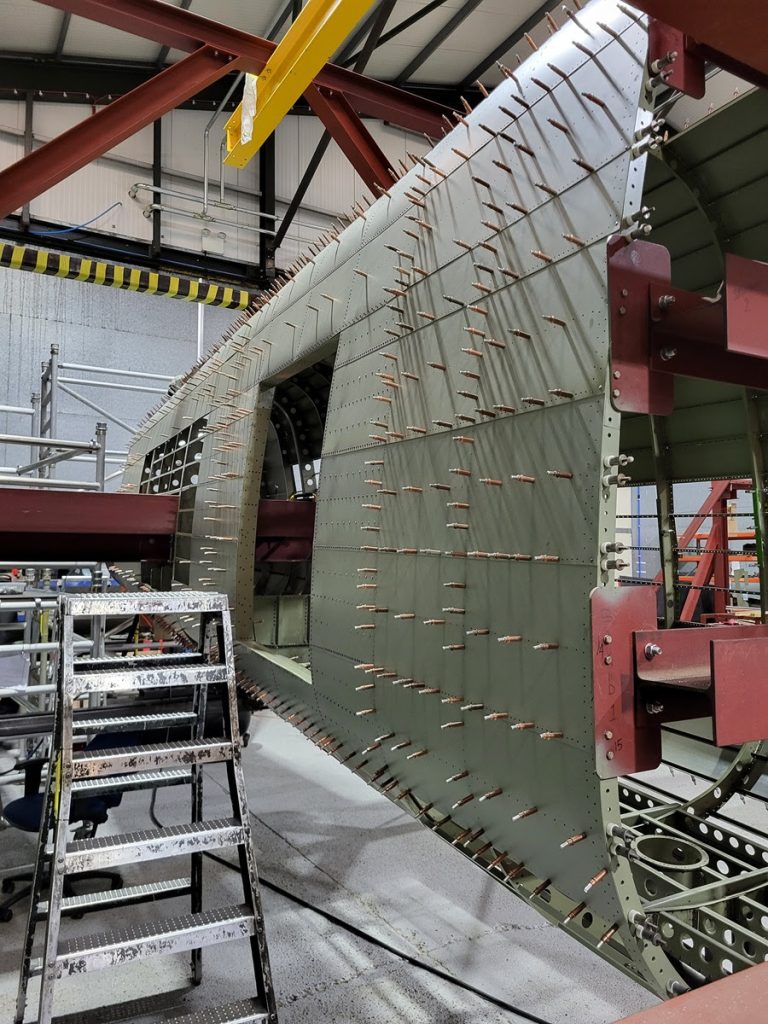

Starboard side of the rear fuselage of NX611
Starboard side of the rear fuselage of NX611. Photo via Lincolnshire Aviation Heritage Centre

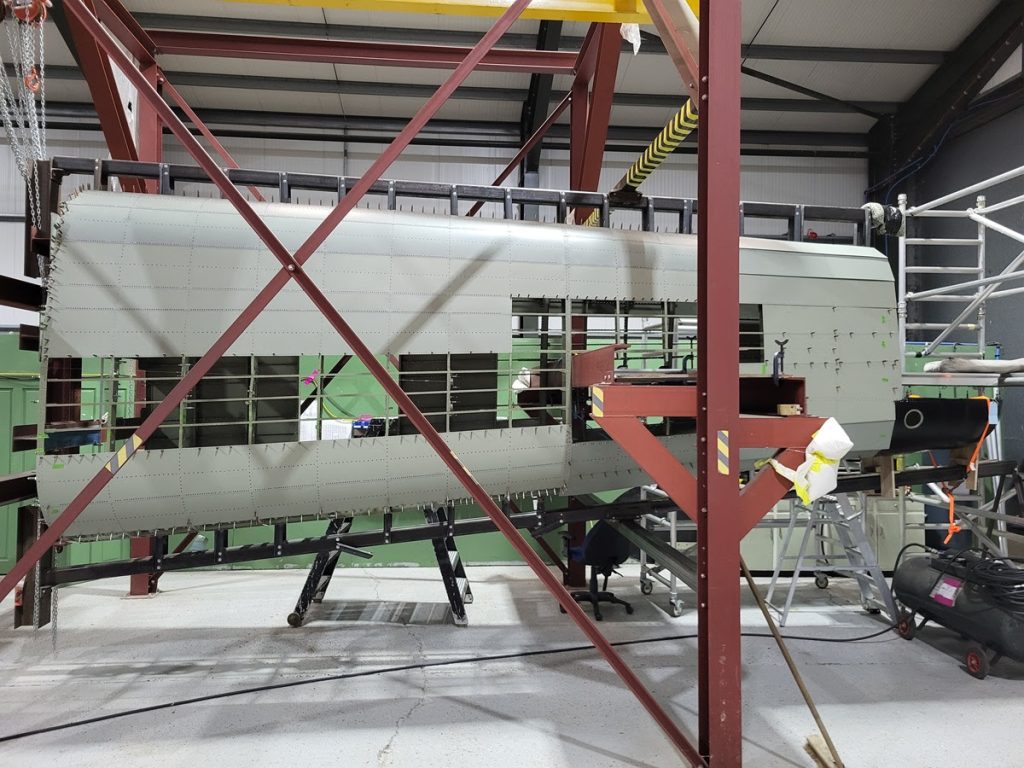

Rear fuselage of NX611 looking far more complete
The rear fuselage of NX611 looks far more complete. Photo via Lincolnshire Aviation Heritage Centre

A Touch of Tribute: Shadows of the Past

This week’s sunshine has brought to life the new Shadows of the Past installation outside the Hampden shed. Created by Standing with Giants and previously displayed at the International Bomber Command Centre in Lincoln for the 80th Anniversary of the Dambusters raid, these evocative silhouettes now reside at East Kirkby. The Centre has acquired seven figures to represent a missing crew, adding a poignant visual tribute to the site.

Shadows of the past a new installation of a lost crew from East Kirkby created by Standing with Giants
Shadows of the past’, a new installation of a lost crew from East Kirkby created by Standing with Giants. Photo via Lincolnshire Aviation Heritage Centre

Wings Fund Campaign Update

Thanks to the generosity of supporters, the GoFundMe Wings Campaign has now raised over £76,605 of the £500,000 target. These vital funds are helping to cover the costs of jigs and aluminium required for the restoration of NX611’s wings. Every donation makes a tangible difference—and supporters who contribute over £50 will receive an exclusive Wings Fund badge as a token of appreciation. If you’d like to contribute and be a part of this historic restoration, you can do so via the THIS campaign link .
